FS3 Maximize

FS3

3 214,75 € (tax excl.)

High-quality SD/HD to 4K Up-conversion

More details

FS3

3 214,75 € (tax excl.)

FS3

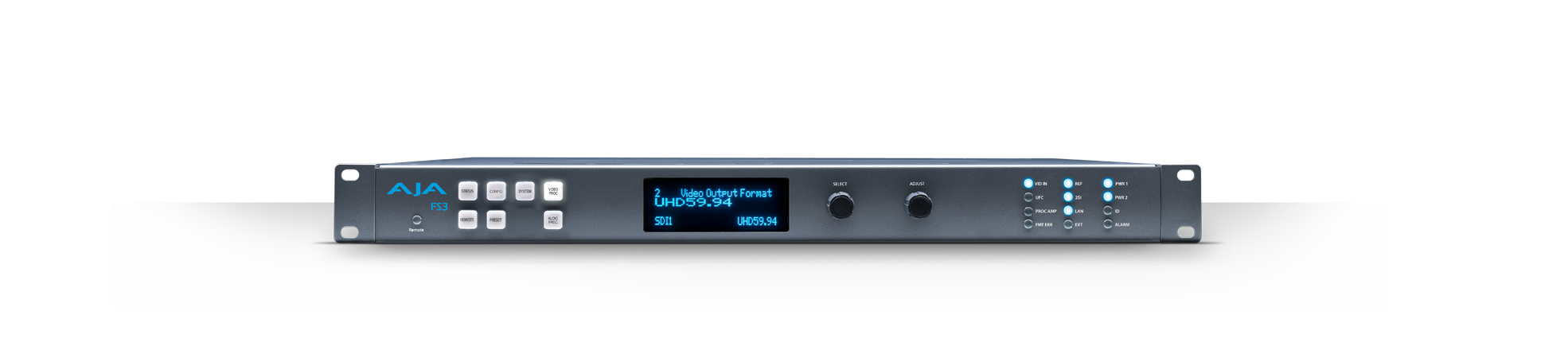

The new FS3 combines AJA’s industry-proven frame synchronization with high-quality 4K up-conversion technology to seamlessly integrate SD and HD signals into 4K workflows. AJA’s adaptive scaling algorithms, paired with our well-known conversion technology ensures your up-converted images will have the maximum quality possible. Input SD or HD resolution SDI via BNC or Fiber and send up-converted 4K to multiple BNC and Fiber outputs simultaneously. FS3 also includes the industry-proven features included in AJA frame synchronizers such as RGB color correction, region of interest scaling, extensive audio controls and routing, web UI control, GPI triggers and more.

Up-convert to 4K

Moving to 4K is never an instant change. Legacy signals and archival material need to be integrated into the 4K environment. Utilizing AJA's remarkable conversion algorithms, FS3 supports up-conversion from SD, HD, and 3G-SDI video to 4K or UHD video carried on quad 3G-SDI BNCs, dual 3G-SDI BNCs, or optional fiber LC SFP outputs. Both Quadrant (Square Division) and 2SI (Two Sample Interleave) output formats are supported.

Incredible Connectivity

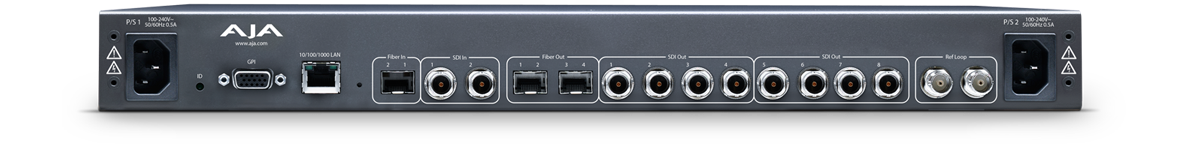

FS3 has BNC and Fiber* inputs to accept SD or HD resolution SDI signals. The up-converted 4K signal is output to two sets of BNC and Fiber* connections, allowing the output to be routed to multiple locations simultaneously without the need for any external signal distribution.

A looping Reference input allows the FS3 to be locked to your house reference signal for rock-solid stability.

* Fiber inputs and outputs are optional.

AJA hardware conversion technology

We bring the same AJA conversion technology to FS3 as we have to all our other conversion products, ensuring your legacy material can move with you to 4K with the highest image quality for your productions.

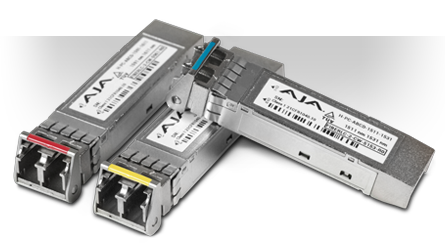

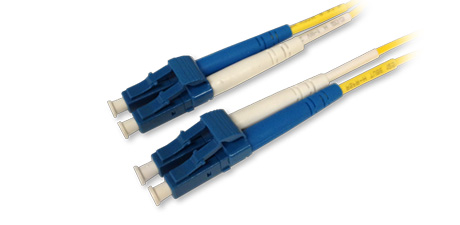

Fiber I/O option

FS3's Fiber I/O option allows fiber cable runs of up to 10 kilometers to be connected directly to the FS3 without the need for separate fiber to SDI conversion.

Fiber connector supported:

Single-channel LC connector modules
Single-channel SC connector modules
Dual-channel LC connector modules

CWDM Fiber Options

The optional fiber inputs and outputs let you to choose from multiple wavelength CWDM SFPs, allowing advanced multiplexing of signals over a single fiber connection.


Possible CWDM options:

  • Dual TX 1271/1291
  • Dual TX 1311/1331
  • Dual TX 1351/1371
  • Dual TX 1391/1411
  • Dual TX 1431/1451
  • Dual TX 1471/1491
  • Dual TX 1511/1531
  • Dual TX 1551/1571
  • Dual TX 1591/1611

Closed caption conversion

FS3 supports closed captioning and the conversion of closed captioning between SD/HD and 4K formats - including full conversion of CEA-608 and CEA-708 standards. FS3 can preserve closed captioning even when converting between formats, removing the need to re-insert closed captions after conversion.

Active Format Description

Automatically sets Active Format Description information to match the converted signal. This means AFD information does not have to be inserted after conversion and provides accurate information for devices that understand AFD.

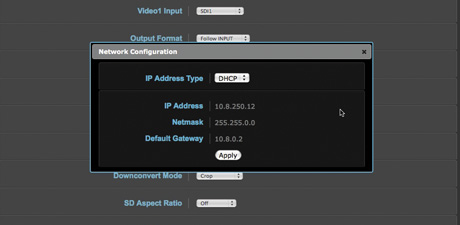

Remote configuration and control

FS3 is network ready and supports SNMP monitoring and web-based remote control. Units can be connected to any Ethernet network via the built-in 10/100/1000MB Ethernet port, allowing control and configuration of multiple FS units from any web browser on a connected computer. Configurations can be saved and applied to multiple units, ensuring consistency and quick configuration in large installs.

To integrate smoothly with the existing automation of a facility, FS3 can also receive external GPI commands to trigger a variety of functions.

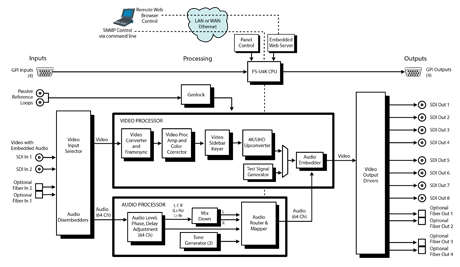

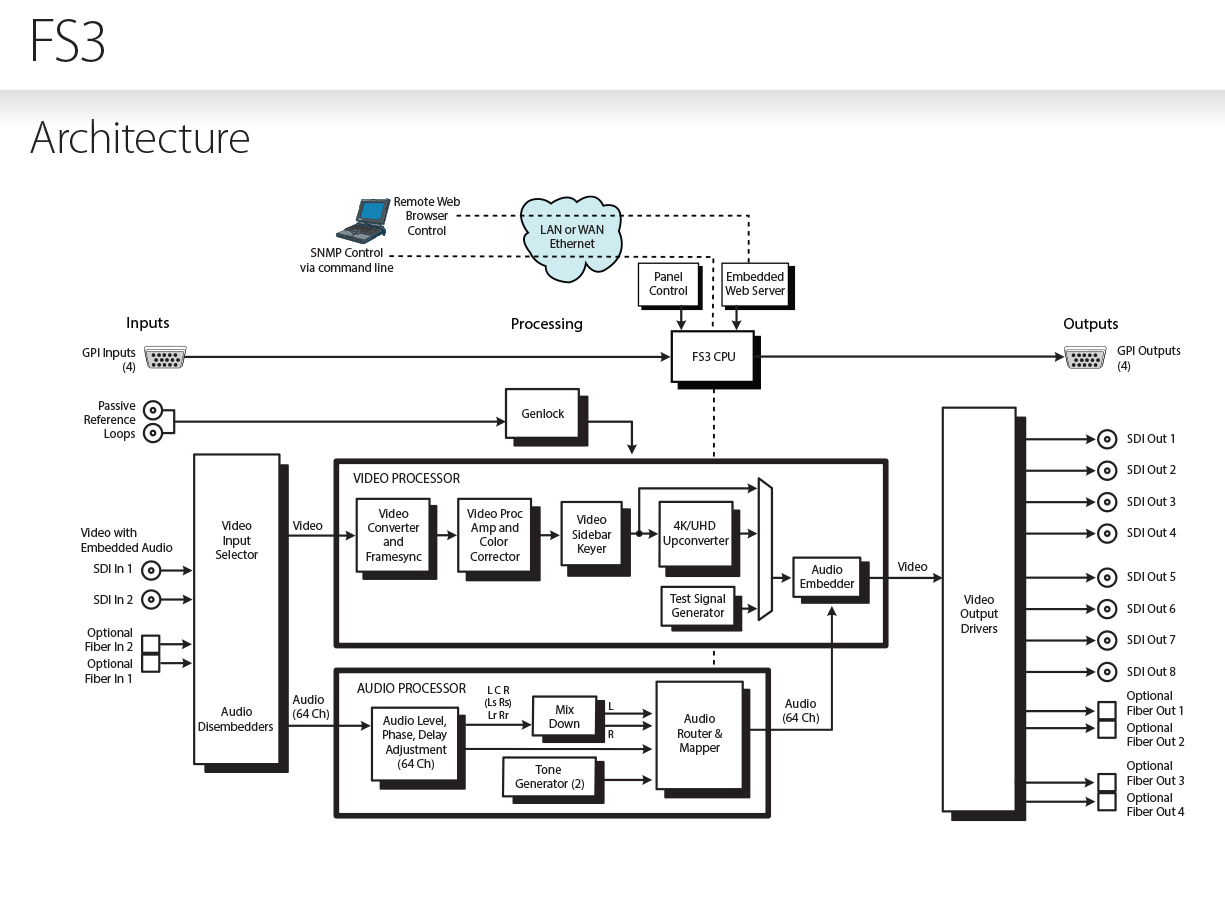

Architecture

FS3 is designed to meet the demands of broadcast engineering and live event production while providing incredible flexibility. Select any of the various inputs for conversion and route to all available outputs simultaneously.

Dual, redundant power supplies ensure uninterrupted power even in the event of a power supply failure.

View Architecture

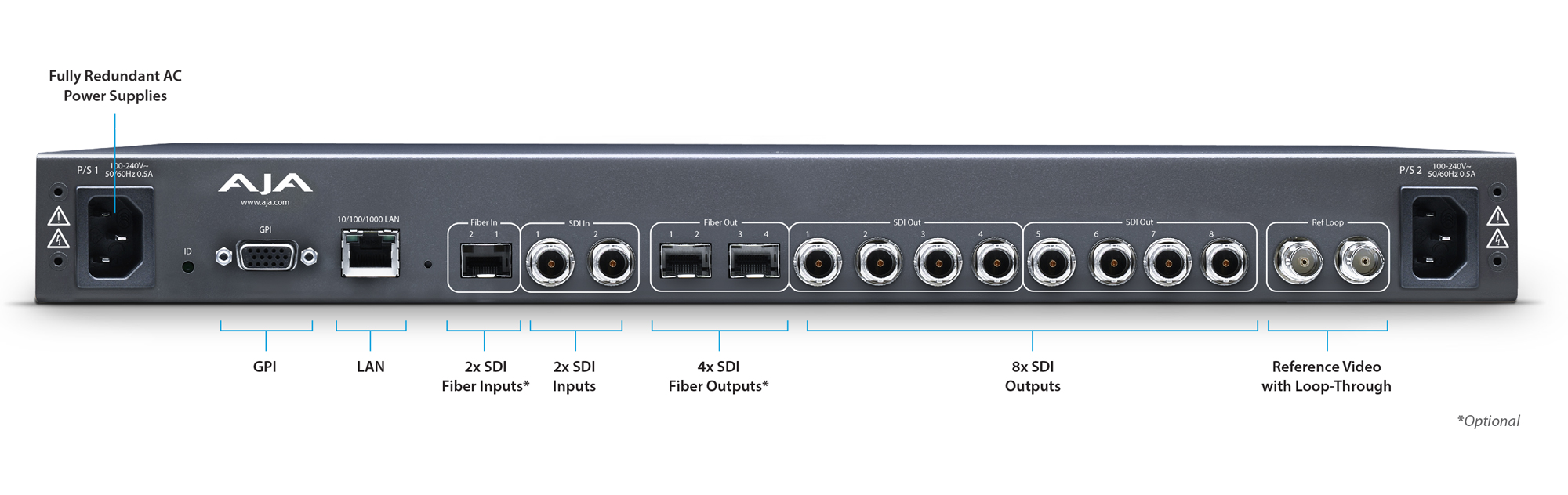

Connectivity

FS3 utilizes standard BNC as well as optional fiber inputs and outputs to integrate easily into a variety of workflows and facilities. Embedded audio can be routed using the internal matrix router to align audio channels as needed.

View Larger

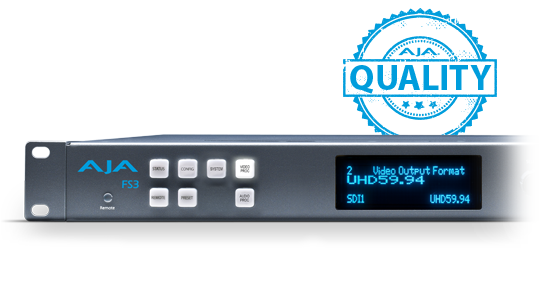

AJA Quality

AJA has a reputation in the industry for exceptional quality and reliability, backed by our 5-year warranty and advance exchange policy to minimize any possible downtime.

  • Supplier website AJA
